Paper roll packing methods can be divided to two main categories: kraft and stretch film wrapping. Suitable packing method is evaluated case by case taking into account available space, needed product protection level and total investment and operating costs. Chaint wrapping lines are based on module structure, which makes them easy to adjust to each customer’s specific need, such as space, capacity, and packing code requirements.

Kraft paper wrapping

mechanical stresses in over-sea deliveries. This packing method is recommended especially for paper and board grades, which require the strongest protection.

Chaint offers innovative and cost efficient wrapping solutions for all capacities, ranging from a flow of 15 rolls up to 180 rolls per hour.

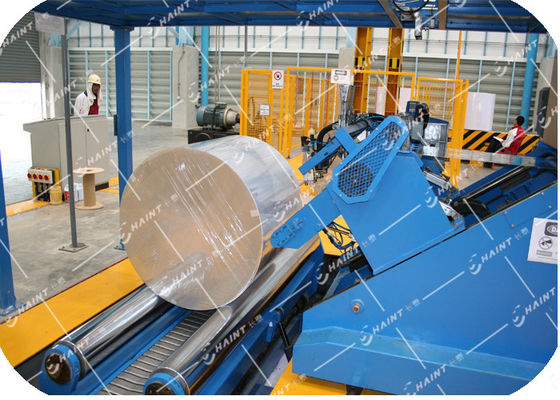

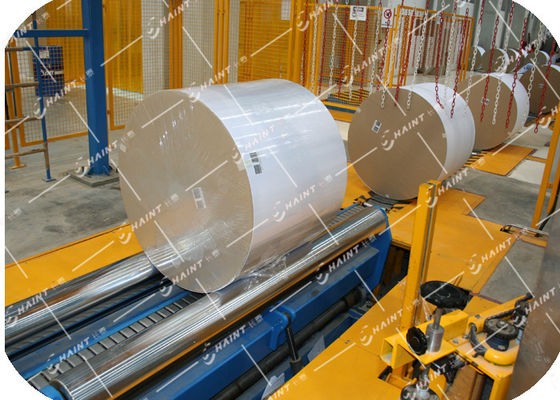

Stretch film wrapping

Stretch film wrapping is ideal for rolls with short transportation chain and mills with limited space. With less equipment and packing materials needed, stretch wrapping system has relatively small investment and operations costs. Capacity for stretch film wrapping supplied by Chaint is 30 up to 80 rolls per hour.

Stretch film as a packing material has excellent qualities. It gives complete protection against moisture and dirt. The film folding function gives extended protection to roll corners.

Packing line features: Fully automated packing functions. High capacity packing machines, capacities up to 180 rolls/hour/line.

Chaint wrapping systems are available with different configurations depending on the capacity requirements. Capacities are ranging from a flow of 15 rolls up to 180 rolls per hour. Kraft and stretch wrapping machines are able to handle roll sizes of up to 2 meters in width and 1.5 meters in diameter, for spiral wrapping machine roll diameter up to 1.5 meters, no limit towards roll width.
